Filling machine for canister

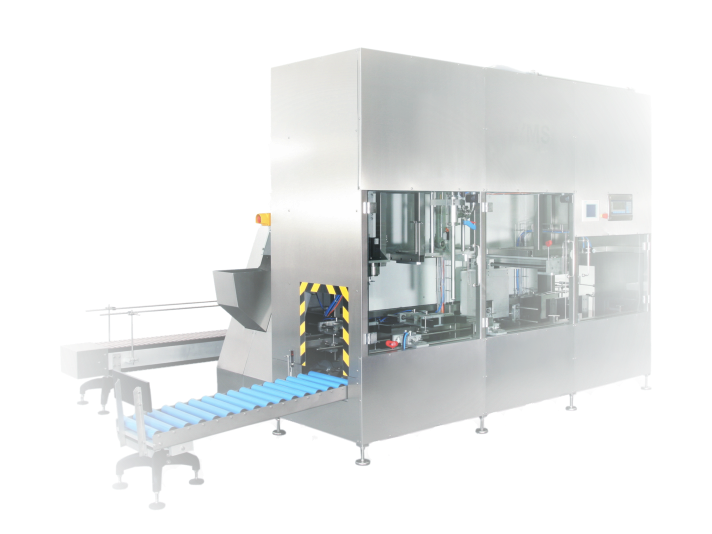

The filling machine VMS-GGF 10-K
is assembled as stand-alone machine for the fully automatic-controlled filling and screwing
of canisters. Integrating all additional equipment as the sorting of screw caps and conveyor
belt in the machine, the VMS-GGF 10-K has a very compact design.
By the use of the Bizerba weighing unit, the VMS-GGF 10-K is most adequate for capacities
from 3 to 30 litres. The screwing of the caps is done by a dynamometric controlled servo motor.
The screwing moment of the servo motor can be adjusted at the touch screen.
In order to guarantee cost-effective filling even with a high number of diverse formats and
products the machine is equipped with a big memory capacity for formats, where the
parameters for the special products and/or formats can be stored.
Starting new filling, the parameters can be accessed. Thus, the time for a modification
of the format or a product change is minimized.
Technical features
- Bizerba filling scale
- special honeycomb filling needle for very foaming products available
- sorting of screw caps using bag conveyor
- dynamometric controlled screwing of the caps
- extreme flexibility of the format by using servo motors
- the machine is operated by only one person
- simple operation via touch screen
- optionally with H2O2 sterilisation of cans and screw caps
available for the handling of food
