Filling machines for big containers

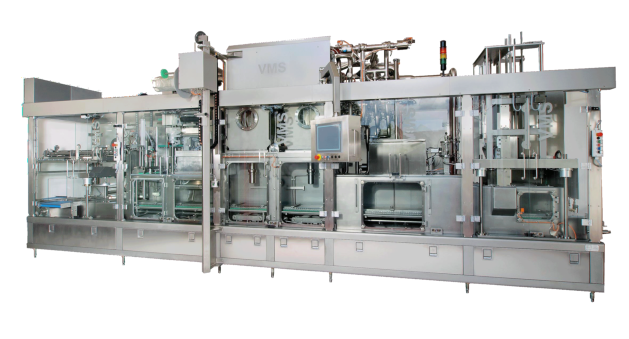

GGF – aseptic filling of big containers
Features:
- hygiene standards ultra-clean or aseptic
- compact system of machines
- conveyor in compact clean room
- systematic guiding of the sterilized air
- partition and extraction system to avoid emissions (TLV <0.5 ppm)
- sterilisation of packaging material with safe reduction of germs of 106
(for test germs bacillus subtilis (spores SA 22) according to the machine
- change of foil while the machine is running
Standard equipment:
- machine completely made from stainless steel
- self supporting machine tunnel
- aseptic doser without agitated seals, steam sterilizable at143°C
- separate control cabinet

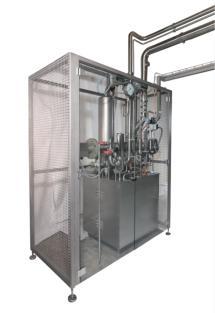

- separate module to prepare sterilised air
- station for the sealing of foil
- sterilisation of buckets with H202
- sterilisation of foil with H202
- control of leak tightness
- slip lid applicator
- preparation for CIP-cleaning
- SIP - sterilisation
Special equipment:
- bucket conveyor with bucket stack
- Inductive flow measuring -filler
- sterilisation of slip lids with H202
- recipe administration
- production data collection system
- module for CIP-cleaning
Content:
- thin fluid to pasty dairy products, also with chunky
parts, maximum size of the fruit 20 x 20 mm
- jam, ketchup, yolk and so on
Further benefits at a glance:
- flexibility of the format 1 – 10 kg
- mechanically constrained unstacking of the buckets

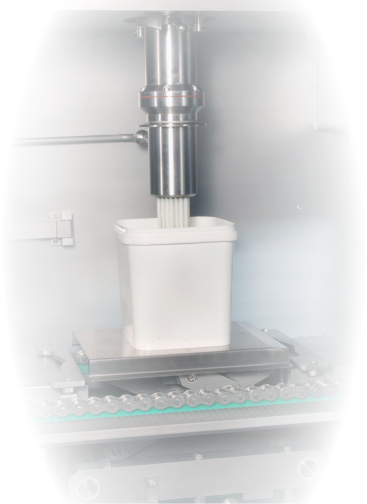

- filling nozzles rapidly changeable with
bayonet system, filament cutter/ membrane nozzles
- lifting of buckets under the filler
- servo drive provides highest flexibility
- extreme filling exactness < ± 0.5 %
Technical data:
Machine type
GGF-10-E
GGF-20 –E
GGF-2000-E
GGF-4000-E
Lines
1
2
2
4
Filling volume
1 – 10 kg
1 – 10 kg
0,1 – 1 kg
0,1 – 1 kg
Performance
600 b/h
1200 b/h
4040 b/h
8080 b/h
Flexibility of the format
1 – 10 kg
1 – 10 kg
No
No
Hygiene categories
ultra clean/aseptic
ultra clean/aseptic
ultra clean/aseptic
ultra clean/aseptic
Max. diameter of the bucket
320 mm
320 mm
160 mm
160 mm
respectively max. lateral length
Maximum height of the bucket
280 mm
280 mm
160 mm
160 mm
